Allen & Heath Xone:24C

The Xone:24 with a 96 kHz USB-C interface, MIDI out and a powered hub; one shared filter and no built-in effects.

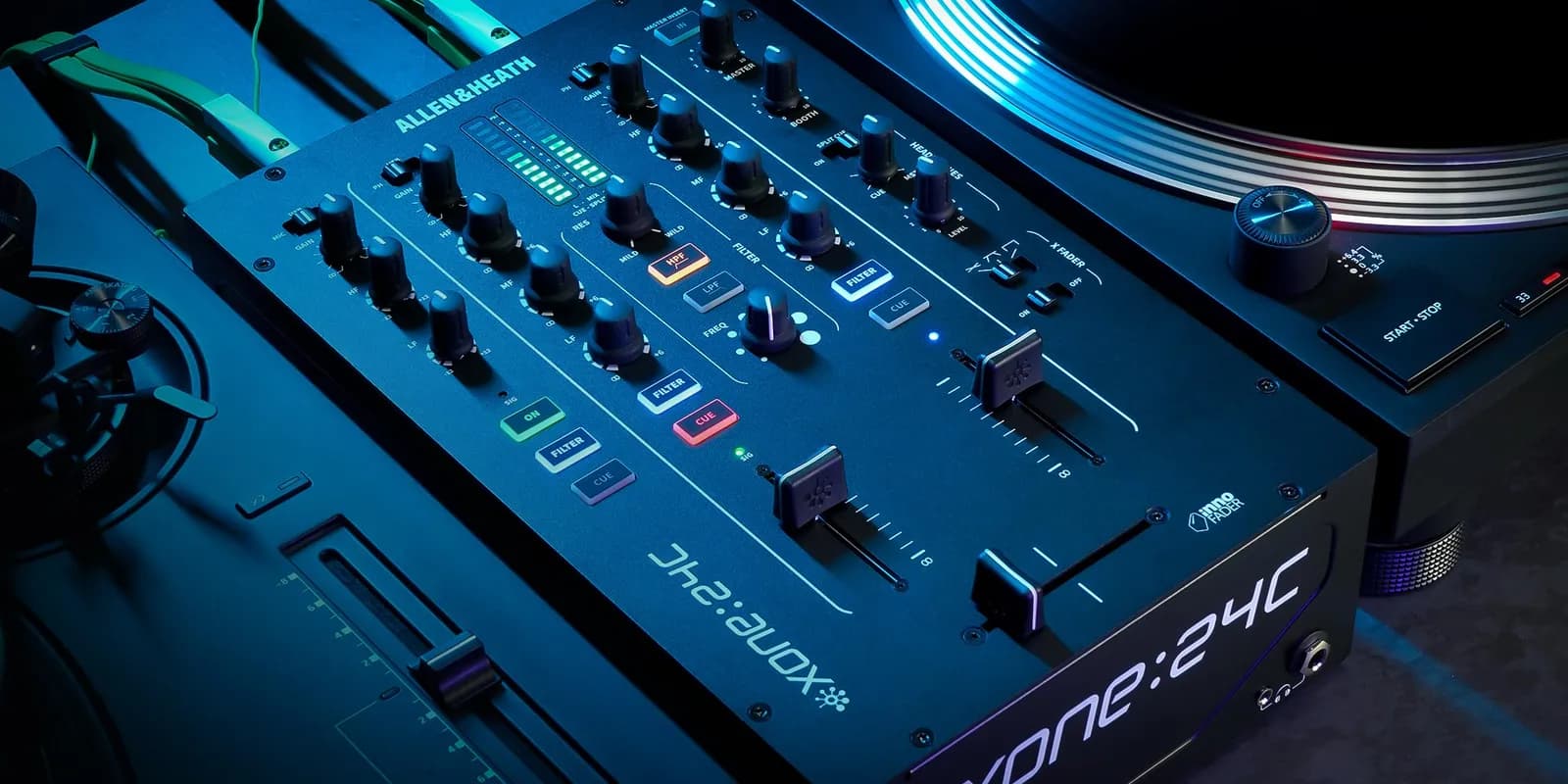

Allen & Heath Xone:24C from above

Photos: Allen & Heath

All retailers and the price history

We may earn commission from links on this page. This does not affect our editorial independence.

3 of 3 professional reviews recommend it
Best for
Vinyl and DVS DJs who want the Xone sound with a laptop or iPad.
Skip it if
You want built-in effects, or play only vinyl and players: get the Xone:24.

The Internet’s Opinion

From 3 professional reviews and 7 owner reviews: a fair amount of evidence.

All three professional reviews recommend it as the Xone:24 with a useful USB-C interface and powered hub, and the seven owners read at Thomann repeat the warm analogue sound, the Xone filter and the solid build. The reservations are one filter shared across channels, no built-in effects beyond a master insert, and sparse channel metering.

3 recommend0 mixed0 avoid

What people praise

  • Warm, clean, detailed analogue sound
  • The Xone filter, with high-pass, low-pass and resonance
  • Solid metal build with no play in the knobs
Show 5 more
  • The USB-C interface makes it a hub for DVS, streaming and laptops or iPads
  • Simple, uncluttered layout that is quick to learn
  • The aux channel works as a third source for a mic, a sampler deck or USB audio
  • Phono preamps are louder and cleaner than on the Xone:23 series
  • The mini innoFADER crossfader suits scratching

What to know first

  • One filter shared by every channel rather than one per channel
  • No built-in effects; the master insert cannot send single channels
  • Channel metering is a single LED per channel, with only the main meters showing levels
See the 3 reviews behind this

3 professional reviews (3 recommend, 0 mixed, 0 avoid); 7 owner reviews read at Thomann (8 posted across the English, German, French, Spanish and Polish pages, 1 under 20 words skipped); Guitar Center lists no reviews yetCompiled 2026-10-17How this is compiled

Prices

Before you buy

Released
October 2025
Status
Current

Works with

  • TurntablesPhono inputs, earth post

    Two RCA phono inputs with RIAA preamps on channels 1 and 2, plus a chassis earth terminal for turntable ground straps Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

  • Media players and line sourcesLine inputs

    Channels 1 and 2 switch between phono, USB and RCA line; the aux channel takes RCA line, USB audio or a mic Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

  • Mac, iPad, iPhone and WindowsClass compliant; Windows driver

    Class compliant on macOS, iPadOS and iOS with no driver; Windows needs Allen & Heath's ASIO driver to reach every USB channel Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

  • djay ProSupported since 5.6

    Algoriddim added the Xone:24C to djay Pro's hardware list on iOS, macOS and Windows with version 5.6 in December 2025 Digital DJ Tips, checked 2026-10-17

  • Traktor, VirtualDJ and other DVS softwareDVS Pro mode

    Bonedo lists djay, VirtualDJ and Traktor among the software it runs with (software that needs certified hardware is excluded) and ran Traktor DVS on a Mac at 128 samples without problems Bonedo, checked 2026-10-17

  • Xone:K3 and USB-C controllersTwo powered hub ports

    Two USB-C hub ports, up to 7.5 W each, connect and power a Xone:K3, K1 or K2 or other class-compliant controllers and audio devices through the one host cable Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

You’ll also need

  • Turntables or media playersNo decks of its own

    A 2+1 channel mixer for vinyl, digital media players, USB audio and other line sources; no playback hardware or DJ software comes in the box Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

  • Speakers, headphones and cablesNot in the box

    The box holds the mixer, a DC power supply with IEC cable, a QR card and a safety booklet; the master output is balanced XLR, booth and record are RCA Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

  • A dynamic microphone (optional)No phantom power

    The aux channel's XLR/TRS combi input wants a low-impedance dynamic mic; condenser mics that need phantom power will not work Manufacturer spec sheet (Allen & Heath (Xone:24C User Guide)), checked 2026-10-17

Key specs

Channels
2 + 1: channels 1 and 2 phono / USB / line, aux channel mic / USB / line
EQ
3-band isolator on channels 1 and 2 (500 Hz, 1.1 kHz, 3.5 kHz), +6 dB to total kill (-75 dB); aux channel 2-band, ±12 dB
Crossfader
45 mm mini innoFADER (VCA) with 3 curves (constant power, transition, fast cut) and an on/off switch
Effects
None built in; stereo master insert (RCA send and return) for external effects or processors
Inputs
2 x phono (RCA), 3 x line (RCA: channels 1 and 2 plus aux)
Mic inputs
1 x XLR / 1/4" TRS combo on the aux channel, +40 dB gain; dynamic mics only, no phantom power
All 15 specifications
Outputs
Master XLR (balanced), booth RCA, record RCA, headphones 1/4" and 3.5 mm with split cue
USB audio interface
USB-C, 24-bit / 96 kHz, 3 stereo in / 3 stereo out; Stream, DVS Pro and DAW modes; class compliant on macOS and iOS, ASIO driver for Windows
Weight
2.8 kg (6.17 lb)
Filter
1 x Xone:VCF analogue filter, HPF / LPF with frequency and resonance, assignable to channels 1, 2 and aux
USB hub and MIDI
2 x USB-C hub ports (up to 7.5 W each) for Xone:K controllers and class-compliant devices; MIDI out from faders, crossfader, filter, cue and insert buttons
Channel faders
45 mm VCA
Frequency response
+/-0.5 dB, 20 Hz – 30 kHz (line in to master out)
Power
External DC power supply, 100 – 240 V AC, 50 / 60 Hz; 35 W max
Dimensions (W x D x H)
190 x 314 x 108 mm (7.48 x 12.36 x 4.25 in)

15 of 15 figures sourced; hover one for its source

Our take

Rory TassellWritten from the sources on this page, not from a loan unit.

All three professional reviews recommend it as the Xone:24 with a 96 kHz USB-C interface, MIDI out and a powered hub, and the seven owners read at Thomann repeat the warm analogue sound, the Xone filter and the solid build. The reservations are one filter shared by every channel, no built-in effects beyond a master insert, and little channel metering. Buy it to mix records with a laptop or iPad; for vinyl alone, the Xone:24 does the same.

What it is

Status, October 2026: current. Allen & Heath still lists the Xone:24C beside the all-analogue Xone:24.

What it is

The Xone:24C is a compact 2+1 channel DJ mixer from Allen & Heath that pairs an analogue signal path with a USB-C audio interface (Allen & Heath product page). It was announced in October 2025 together with the Xone:24, and the pair replaced the Xone:23C and Xone:23 (gearnews). The mixing section is the Xone:24's: RIAA phono preamps, a three-band isolator EQ with total kill on channels 1 and 2, one Xone:VCF high-pass and low-pass filter with resonance, a 45 mm mini innoFADER crossfader with three curves, and a master insert for external effects. There are no built-in effects.

The C adds a class-compliant 24-bit, 96 kHz interface with three stereo inputs and three stereo outputs, set at power-up to Stream, DVS Pro or DAW mode, and every channel can play USB audio from a computer, iPad or phone. Two powered USB-C hub ports replace the X:Link socket of earlier Xone mixers and take a Xone:K3 or other class-compliant controllers, and the faders, crossfader, filter and cue buttons send MIDI (Xone:24C User Guide). macOS and iOS need no driver; Windows uses Allen & Heath's ASIO driver. djay Pro has supported it since version 5.6.

The rear panel has two phono and three line inputs on RCA, a combi input for a dynamic mic, a balanced XLR master, RCA booth and record outputs, the RCA insert send and return and an earth post; headphones take 1/4" or 3.5 mm jacks. It measures 190 x 314 x 108 mm and weighs 2.8 kg. The box holds the mixer, a DC power supply with IEC cable, a QR card and a safety booklet.
